燃氣導熱油爐，燃氣導熱油鍋爐，出口應用于天燃氣豐富的中東和西亞國家（如俄羅斯，烏磁別克斯坦，伊郎，伊拉克，沙特阿拉伯，土耳其，印度，巴基斯坦）各種需要進行高溫加熱的各行各業。

Gas fired heat transfer oil furnaces and gas fired heat transfer oil boilers are exported to various industries requiring high-temperature heating in Middle East and West Asia countries rich in natural gas (such as Russia, Uzbekistan, Iran, Iraq, Saudi Arabia, Türkiye, India, Pakistan).

燃氣導熱油爐，燃氣導熱油鍋爐是以天燃氣為燃料，導熱油為熱載體，通過循環泵強制液相循環，將熱能輸送給用熱設備，換熱后返回加熱爐重新加熱的直流式特種工業爐。

Gas thermal oil furnace and gas thermal oil boiler are special industrial furnaces that use natural gas as fuel, thermal oil as heat carrier, and forced liquid-phase circulation through circulation pumps to transfer heat energy to heating equipment. After heat exchange, they are returned to the heating furnace for reheating.

燃氣導熱油爐，燃氣導熱油鍋爐主要由供熱系統、燃燒系統及控制系統構成。

Gas thermal oil furnace and gas thermal oil boiler mainly consist of heating system, combustion system, and control system.

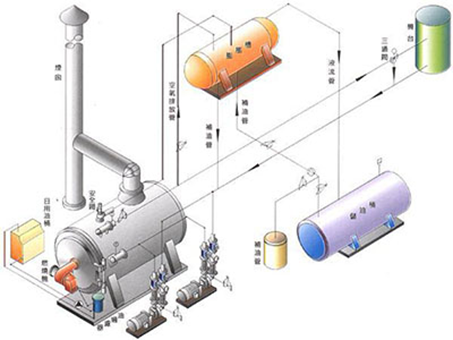

1.1供熱系統：主要由循環油泵、加熱爐本體、熱用戶（用熱設備）、油氣分離器及相關閥門管線構成，如儲油槽、膨脹槽、注油泵等也都是不可缺少的輔助管路及設備。

1.1 Heating system: mainly composed of circulating oil pump, heating furnace body, heat user (heat equipment), oil and gas separator, and related valve pipelines, such as oil storage tank, expansion tank, oil injection pump, etc., are also indispensable auxiliary pipelines and equipment.

1.2燃燒系統：主要由燃氣供給系統、燃燒器、加熱爐、煙道防爆門、空預器、煙囪及有關閥門管線組成。

1.2 Combustion system: mainly composed of gas supply system, burner, heating furnace, flue explosion-proof door, air preheater, chimney, and related valve pipelines.

1.3控制系統：控制系統分為動力控制和儀表顯示控制兩部分。

1.3 Control System: The control system is divided into two parts: power control and instrument display control.

動力控制主要控制循環泵、注油泵、助燃空氣風機、燃燒器等設備的起動與停止，同時循環泵與燃燒器之間進行聯鎖控制以保證加熱爐進行安全運行。

Power control mainly controls the start and stop of equipment such as circulation pumps, oil injection pumps, combustion air fans, and burners. At the same time, interlocking control is carried out between the circulation pumps and burners to ensure the safe operation of the heating furnace.

儀表顯示控制通常采用出口油溫控制燃燒器進行油溫調節、進出口油溫顯示、熱載體壓差報警、膨脹槽液位報警及最終排煙溫度顯示，采用溫度信號控制燃燒器，使其達到自動控制功能。

Instrument display control usually uses outlet oil temperature control burner for oil temperature regulation, inlet and outlet oil temperature display, heat carrier pressure difference alarm, expansion tank liquid level alarm, and final exhaust gas temperature display. Temperature signal control burner is used to achieve automatic control function.

在自動控制系統的管理下，通過各系統的互相協調，可實現以下功能：

Under the management of the automatic control system, the following functions can be achieved through the coordination of various systems:

1)   為用熱設備提供滿足負荷要求的穩定高溫熱源；

1) Provide stable high-temperature heat sources that meet load requirements for thermal equipment;

2)   保持整個熱系統穩定運行，實現不間斷連續運行；

2) Maintain stable operation of the entire thermal system and achieve uninterrupted continuous operation;

3)   實現加熱爐熱負荷自動調節；

3) Realize automatic adjustment of heating furnace heat load;

4)   實現熱載體爐在非正常工況下的安全連鎖反饋保護；

4) Implement safety chain feedback protection for heat carrier furnaces under abnormal working conditions;

5)    具有各種非正常情況下的預警、報警、故障鎖定等功能；

5) Has various functions such as early warning, alarm, and fault locking under abnormal conditions;

6)   實現循環油泵的切換,完成運行中的熱油即時過濾;

6) Realize the switching of the circulating oil pump and complete the real-time filtration of hot oil during operation;

7)         可實現自動無人運行。

7) Can achieve automatic unmanned operation.

燃氣導熱油爐以它的低壓高溫、運行安全、控制先進、效益顯著等特點得到了國內外各行業的極大關注，廣泛應用于石油化工：油脂： 塑料橡膠：  皮革行業：  紡織印染： 化纖纖維： 涂裝油漆： 汽車飛機： 木材加工： 林產工業： 造紙印刷： 建筑建材：   碳素工業：公路交通： 市政公路筑路： 瀝青加熱： 制藥工業：  原子能工業：金屬加工： 食品工業等工業領域，其發展至今,已成為國民經濟中必不可少的節能型供熱設備。

Gas thermal oil furnaces have attracted great attention from various industries both domestically and internationally due to their characteristics of low pressure and high temperature, safe operation, advanced control, and significant benefits. They are widely used in industries such as petrochemicals, fats, plastics, rubber, leather, textile printing and dyeing, chemical fibers, painting, automobiles and airplanes, wood processing, forestry industry, papermaking and printing, building materials, carbon industry, highway transportation, municipal road construction, asphalt heating, pharmaceutical industry, atomic energy industry, metal processing, and food industry. Since its development, it has become an essential energy-saving heating equipment in the national economy.

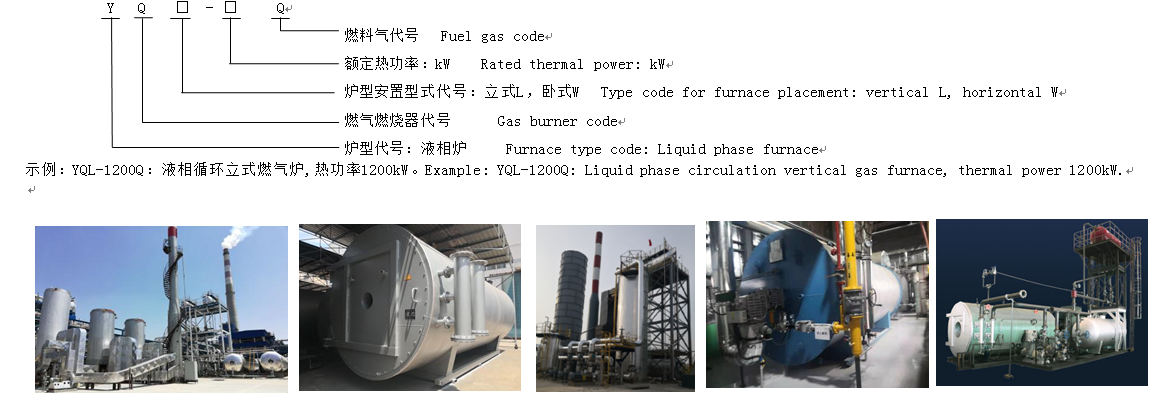

燃氣導熱油爐，燃氣導熱油鍋爐規格型號有：立式與臥式之分

There are two types of specifications for gas thermal oil boilers: vertical and horizontal

YQW（L） 15~250 ×10⁴kcal/h燃氣導熱油鍋爐型號規格參數

YQW (L) 300~1200 × 104kcal/h Fuel Gas Thermal Oil Boiler Model Specification Parameters

注：熱效率指爐體熱效率，配置余熱回收裝置后，系統熱效率可達到92%以上

Note: Thermal efficiency refers to the thermal efficiency of the furnace body. After configuring a waste heat recovery device, the system's thermal efficiency can reach over 92%

YQW（L） 300~1200 ×10⁴kcal/h燃油燃氣導熱油鍋爐型號規格參數

YQW (L) 300~1200 × 104kcal/h Fuel Gas Thermal Oil Boiler Model Specification Parameters

注：熱效率指爐體熱效率，配置余熱回收裝置后，系統熱效率可達到92%以上

Note: Thermal efficiency refers to the thermal efficiency of the furnace body. After configuring a waste heat recovery device, the system's thermal efficiency can reach over 92%
